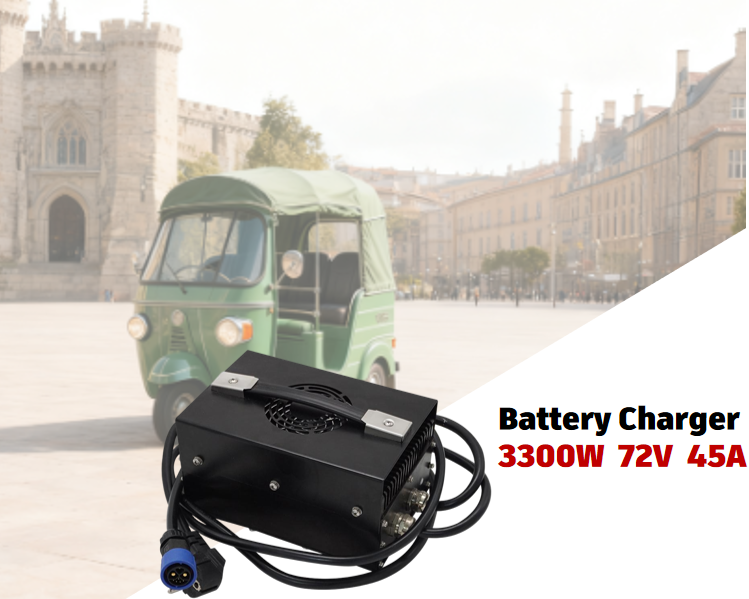

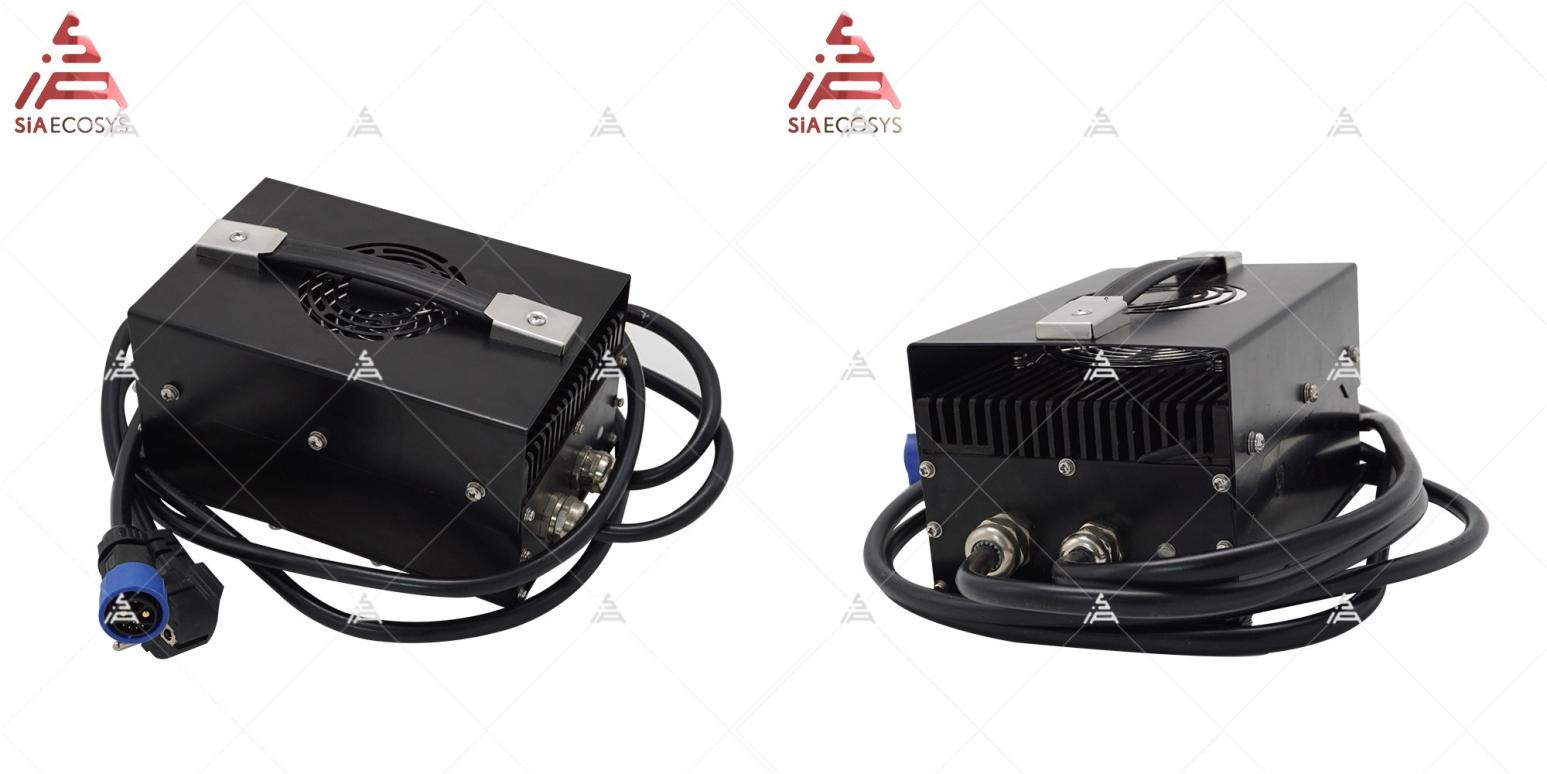

3300W 72V 45A Charger for Tuk-Tuk

Especially suitable for electric tuk tuk / 3 wheeler

Application

The 3300W on-board charger is engineered for electric tuk-tuks, tricycles, and other compact EVs, delivering high-efficiency and rapid charging performance. Designed to handle demanding applications, it ensures shorter charging time while maintaining excellent reliability and safety.

With CAN BUS communication, multi-color status indication, and a rugged IP66-rated enclosure, this charger performs flawlessly in both urban and off-road environments. It’s the ideal solution for 72V electric power systems requiring powerful and stable charging support.

CONTACT US

-Technical Parameters

AC Input Voltage Range:72~220VAC/50Hz

Optional Power Rates: 3300W/45A (4.5hours)

Power Factor: ≥0.99

Efficiency: ≥93.0%

Noise: ≤60dB

Protection level: IP66

-Functions

CAN BUS Interface compatible

Triple Colors Indicator compatible

Vehicle Charging Lock System compatible

Integrated with an auxiliary power supply for 12V

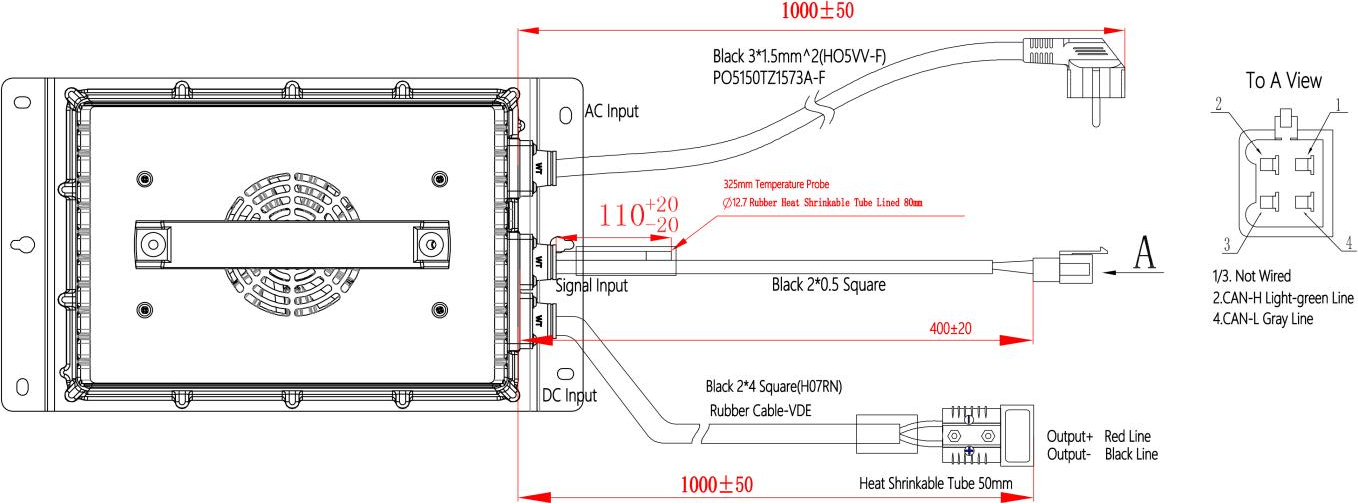

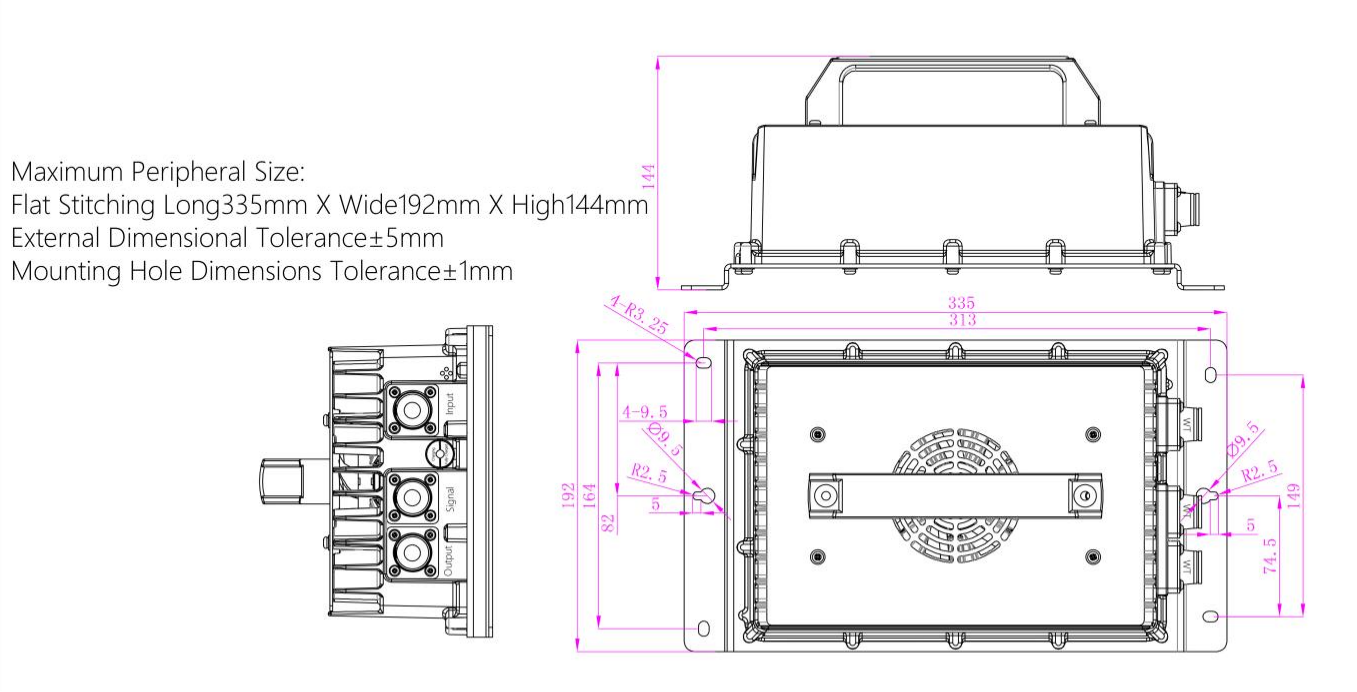

-Overall View

NOTE-Example drawing, dimensions for reference, varies for different models.

Applicable vehicle models:
