1800W 72V 25A Charger for Tuk-Tuk

Especially suitable for electric tuk tuk / 3 wheeler

Application

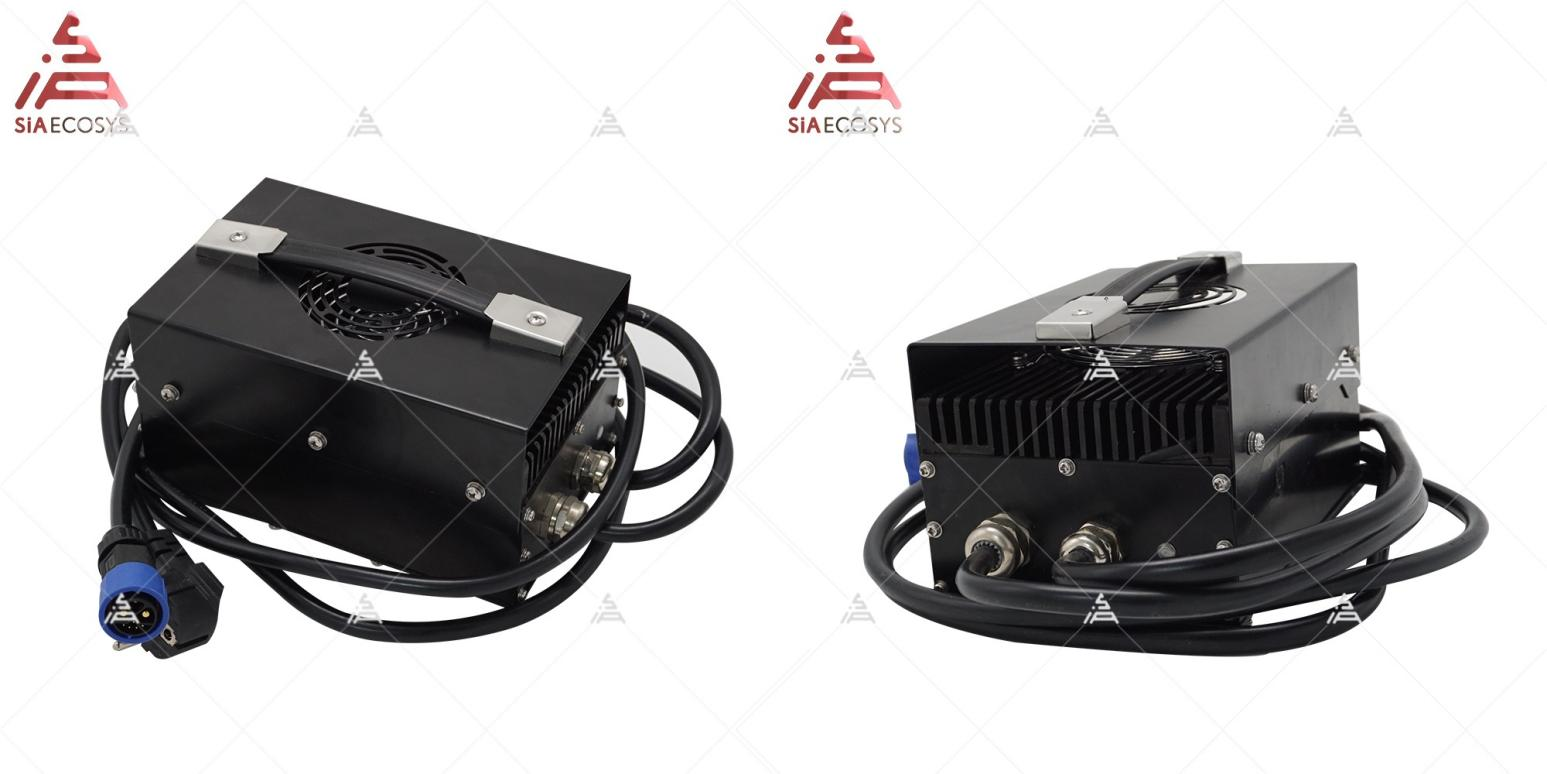

The 1800W on-board charger is specially designed for electric tuk-tuks and low-speed EVs, offering fast, efficient, and stable charging performance. Its compact and durable design ensures reliable operation in various environments.

With CAN communication compatibility and a triple-color indicator system, it provides intuitive status monitoring and seamless integration with different vehicle systems. Built for long-lasting performance, this charger is the perfect match for 72V electric powertrain applications.

CONTACT US

-Technical Parameters

AC Input Voltage Range:72~220VAC/50Hz

Optional Power Rates: 1800W/25A (4.5hours)

Power Factor: ≥0.99

Efficiency: ≥93.0%

Noise: ≤60dB

Protection level: IP66

-Functions

CAN BUS Interface compatible

Triple Colors Indicator compatible

Vehicle Charging Lock System compatible

Integrated with an auxiliary power supply for 12V

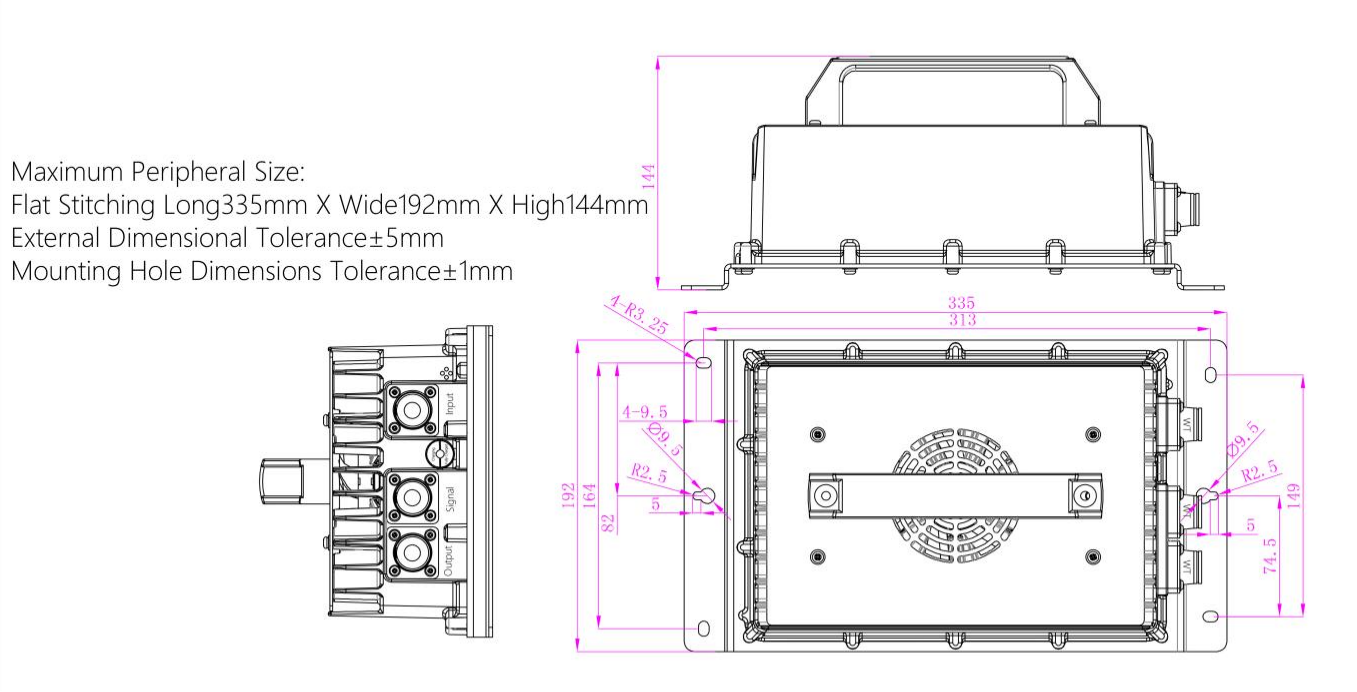

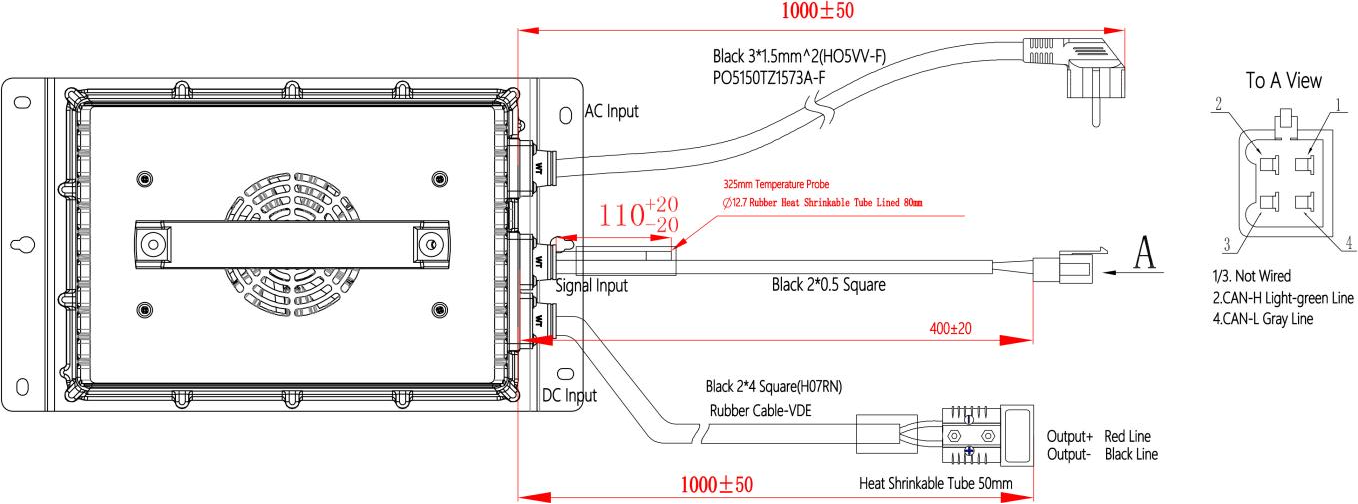

-Overall View

NOTE-Example drawing, dimensions for reference, varies for different models.

Applicable vehicle models:
