JH Axle 5kW Electric Power train for Cargo Tricycle – High-Torque and Durable Solution for Daily Delivery Need
PMSM 5kW Electric Power train for Cargo Cart
Our 5kW electric powertrain solution is tailored for compact electric vehicles such as community EVs, sightseeing carts, and mini logistics carriers, where energy efficiency, low noise, and smart control are essential.
Featuring a high-efficiency PMSM motor (95% max) with peak power up to 10kW and torque of 90Nm, the system delivers stable performance in low-voltage applications (48/60/72V). The intelligent MCU supports CAN 2.0 communication, regenerative braking, hill start assist (HSA), and anti-slope functionality for enhanced safety and control.
The lightweight rear axle is engineered for smooth and quiet operation, with customizable gear ratios (8:1, 10:1, 11.87:1) to adapt to different terrain and load demands. It offers a well-balanced combination of driving comfort, reliability, and integration flexibility.
This complete, pre-tested solution helps OEMs accelerate development, reduce cost, and bring practical, high-performance electric mobility products to market faster.
Key Features
Fully engineered and Pre-tested as a complete drive solution
High-efficiency PMSM motor with up to 95% energy conversion rate
Controller with Bluetooth communication, CAN 2.0 support, and programmable logic
Regenerative braking & intelligent slope-hold feature
Customizable driving axle with low noise and high durability
Support for different vehicle chassis and wheel bolt patterns
Product Description
1. PMSM 5KW ELECTRIC MOTOR
Model No.: SEVS-NP145-72-5-120H

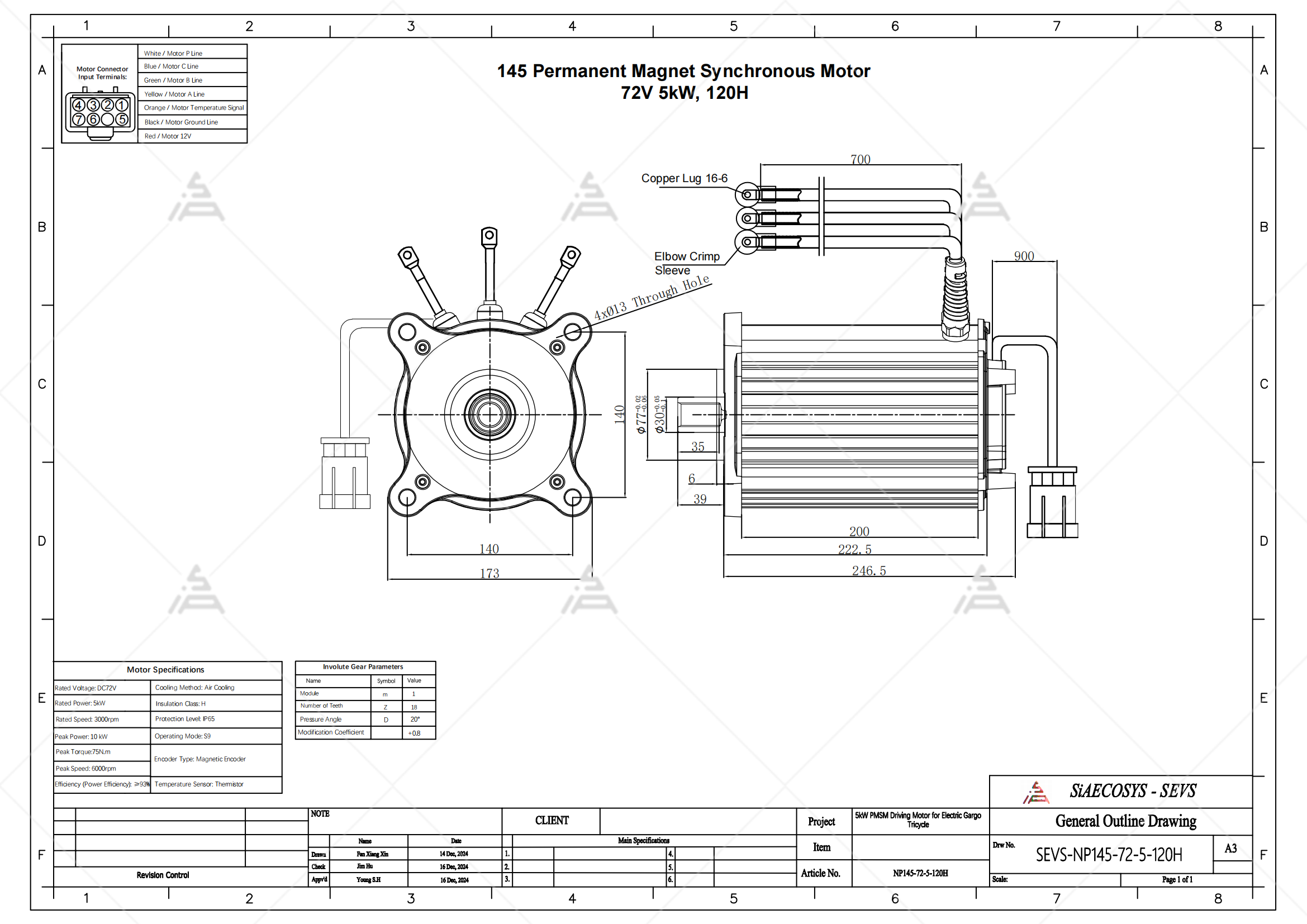

Dimension Drawing:

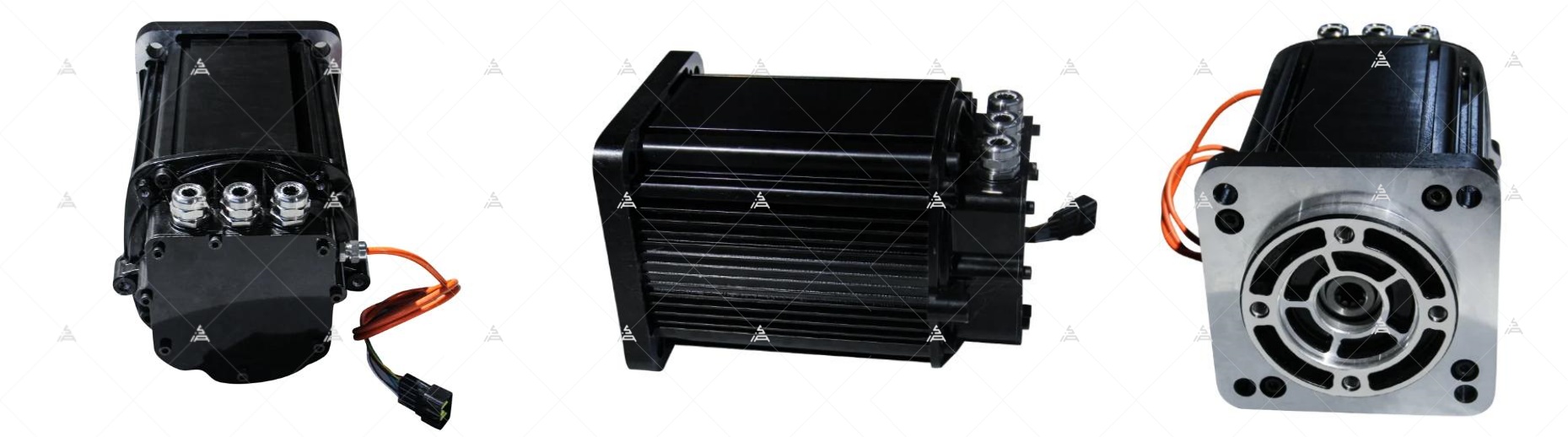

Multi-angle product photos：
2. MCU for 7.5KW PMSM MOTOR
Model No.: APT2209.A0.00E.V3.2
Dimension Drawing:

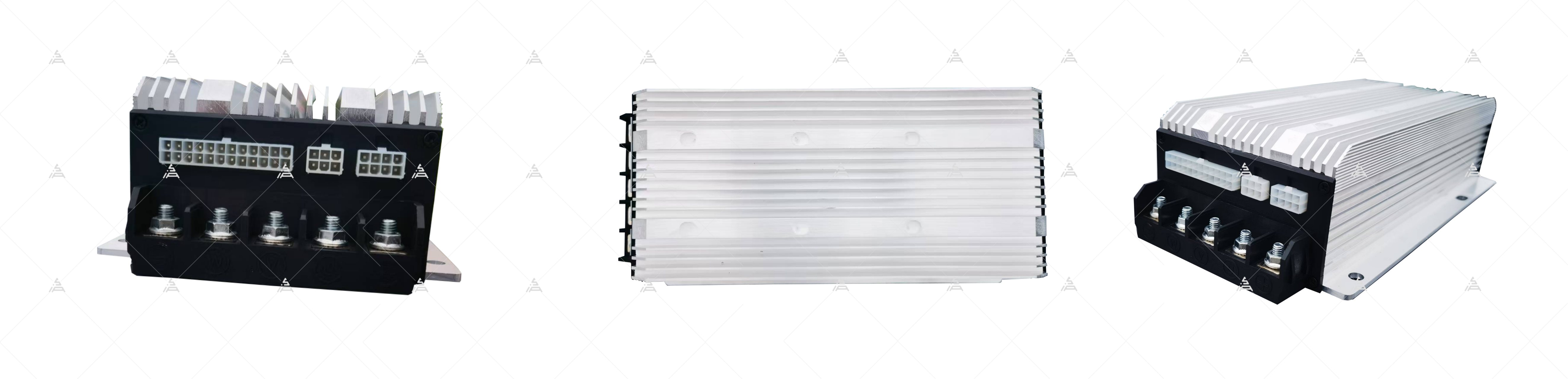

Multi-angle product photos：
3. Rear Axle System
Model No.: JH-136-02

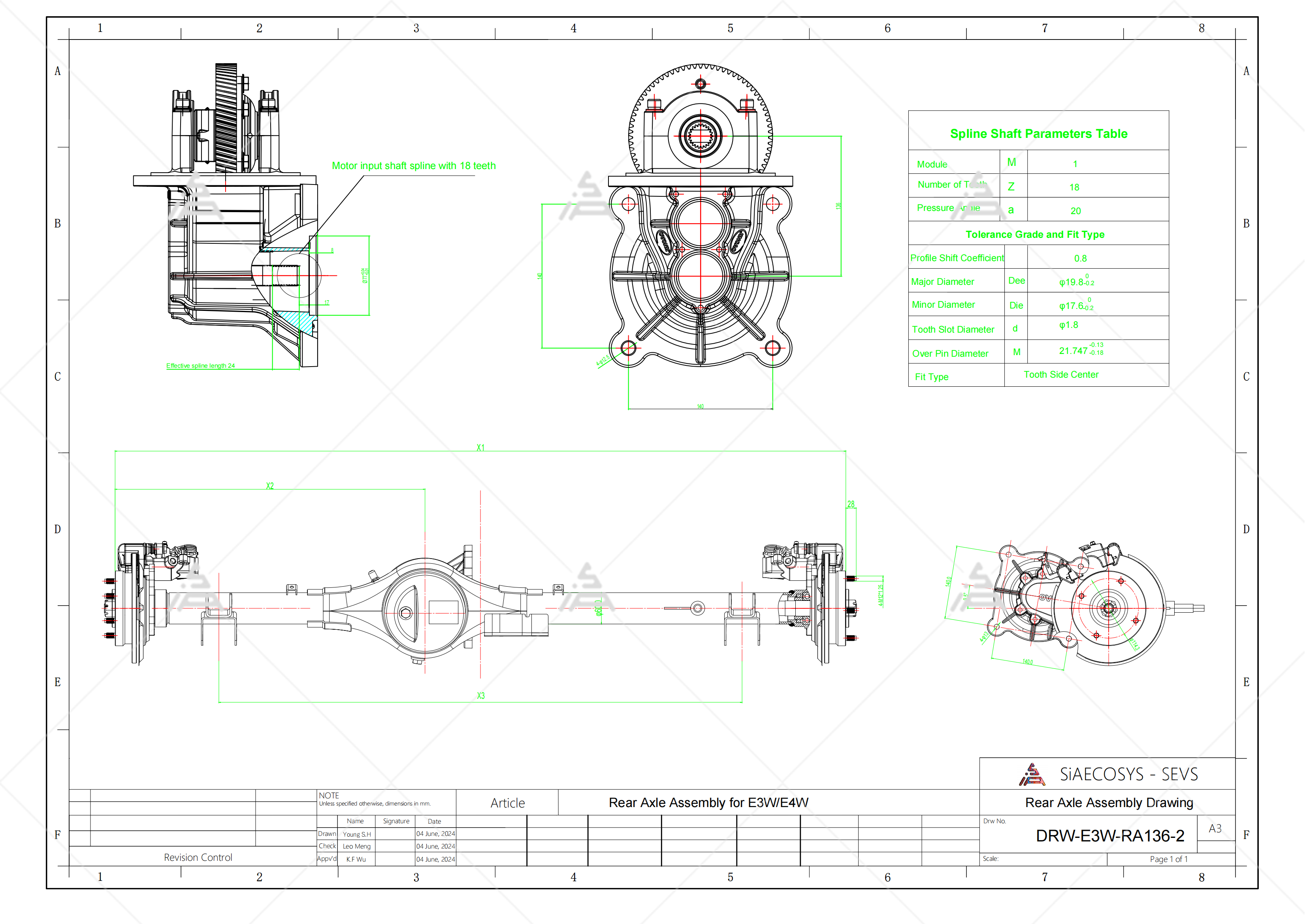

Dimension Drawing:

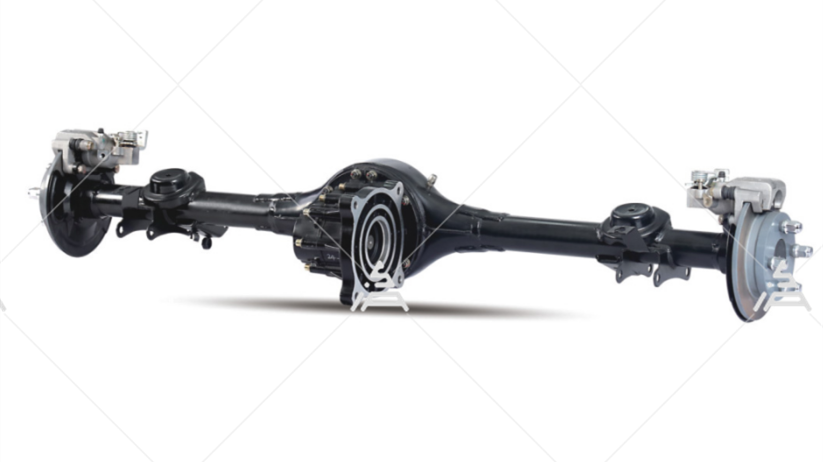

Multi-angle product photos：
Various Vehicle Usage Scenarios
