JH Axle 10kW Electric Power train for Four Cargo Wheels – Reliable & Efficient Power Solution

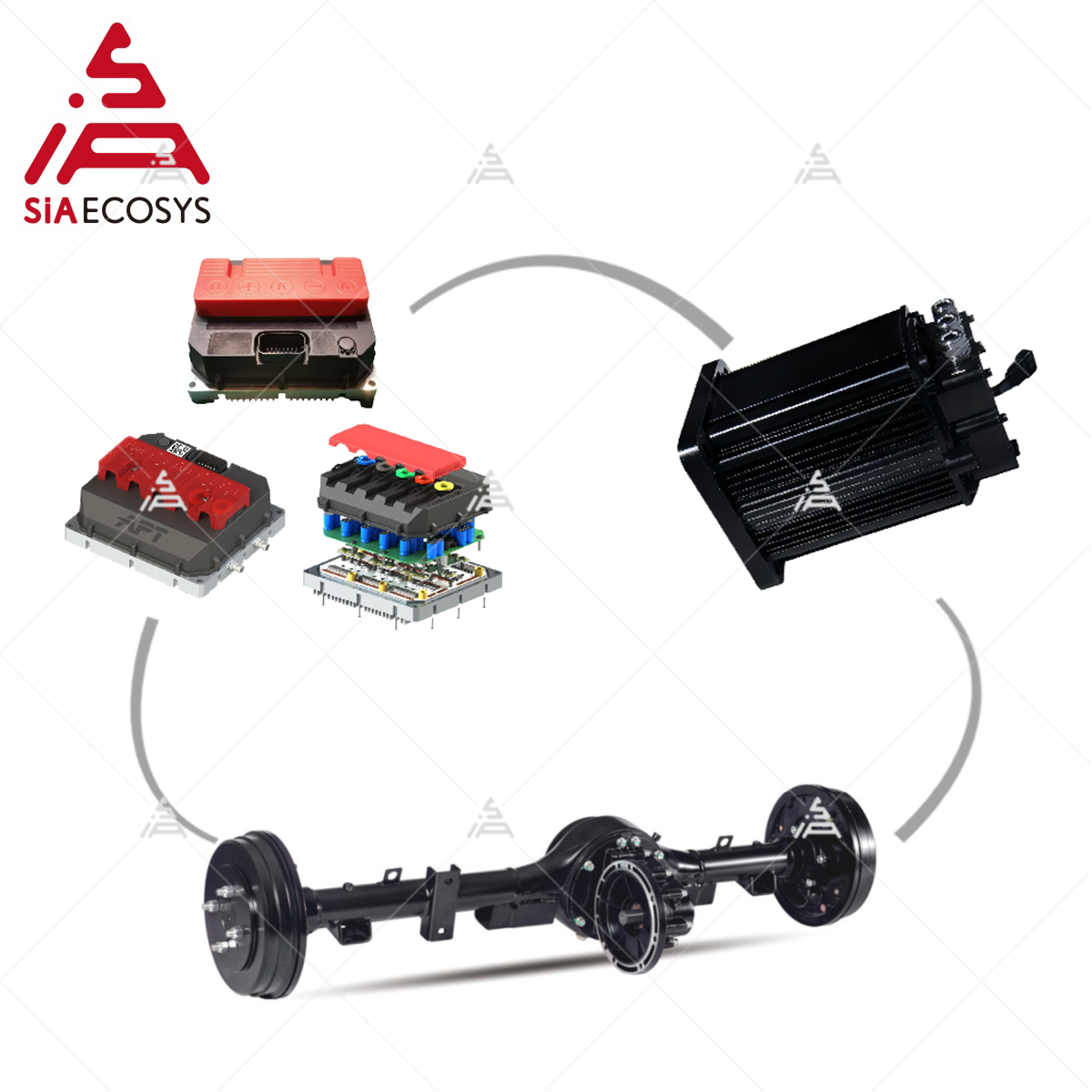

PMSM 10kW Electric Power train for Four Cargo Wheels
Our 10kW electric rear axle system is specifically designed for electric tricycles and electric four wheels, delivering efficient and reliable power transmission that enhances both acceleration and driving range.With a maximum power output of 10kW and peak torque of 300Nm, the system enables smooth acceleration, significantly improving the vehicle's performance and stability.
Perfectly matched with electric drive systems, it ensures enhanced control and stability during both urban driving and extended operation.
Our rear axle system has already been successfully applied in variouselectric golf carts,tricycles, and electric logistics vehicles, with customer feedback highlighting outstanding performance and improved energy efficiency.
By integrating this complete vehicle solution, OEM can not only boost vehicle power and range, but also shorten development cycles, reduce R&D efforts,and deliver higher-quality electric mobility solutions to their customers.
Key Features
Fully engineered and Pre-tested as a complete drive solution
High-efficiency PMSM motor with up to 95% energy conversion rate
Controller with Bluetooth communication, CAN 2.0 support, and programmable logic
Regenerative braking & intelligent slope-hold feature
Customizable driving axle with low noise and high durability
Support for different vehicle chassis and wheel bolt patterns
Product Description

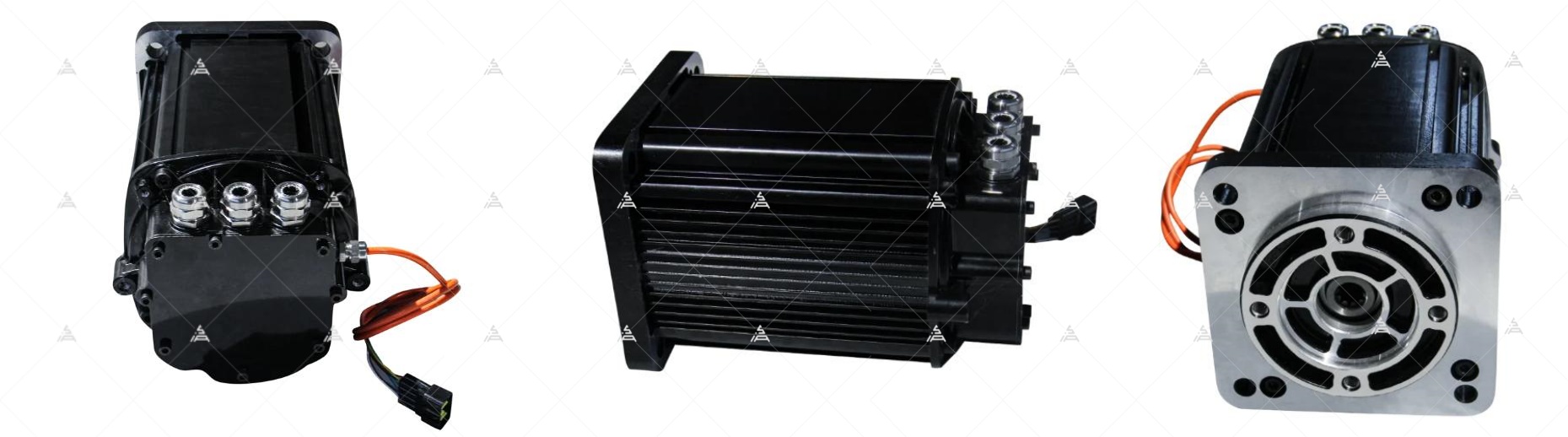

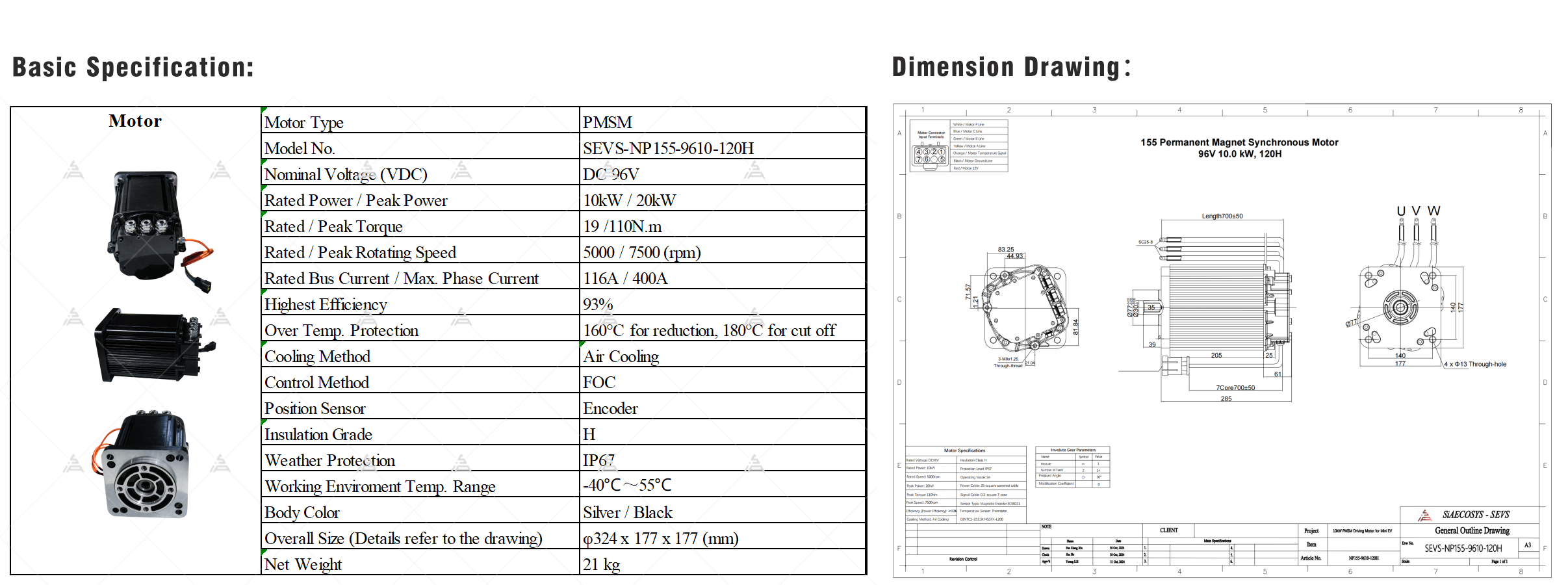

1. PMSM 10KW ELECTRIC MOTOR
Model No.: SEVS-NP155-9610-120H
Multi-angle product photos：

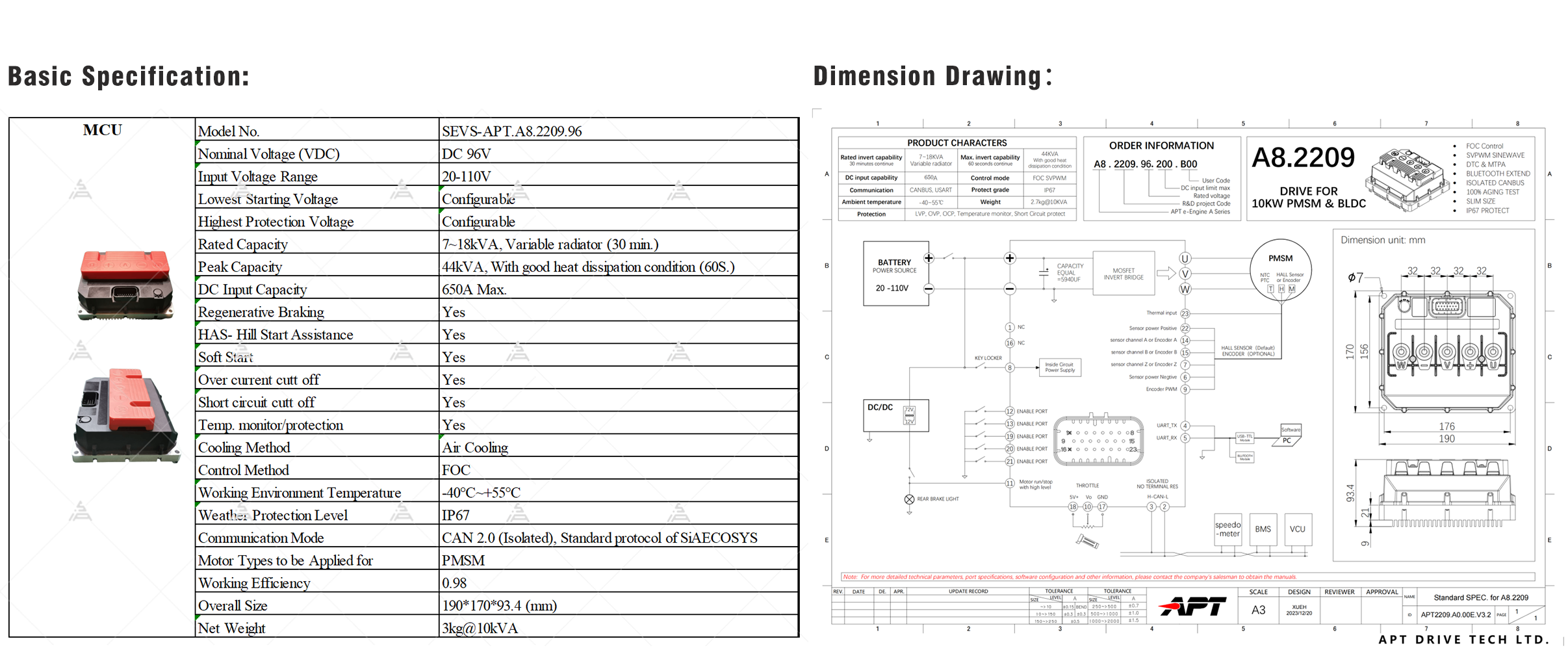

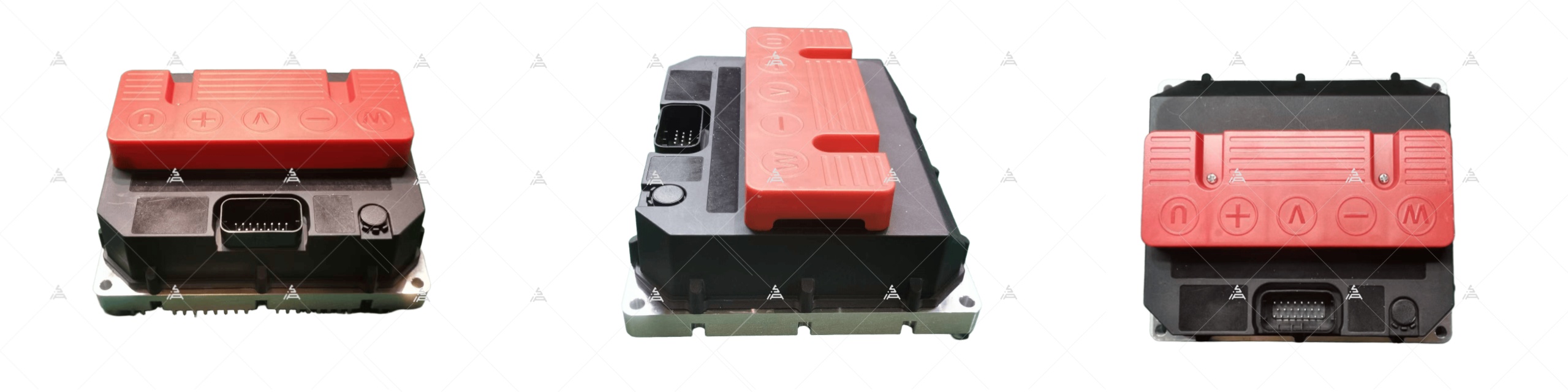

2. MCU for 10KW PMSM MOTOR
Model No.: SEVS-NP155-9610-120H
Multi-angle product photos：

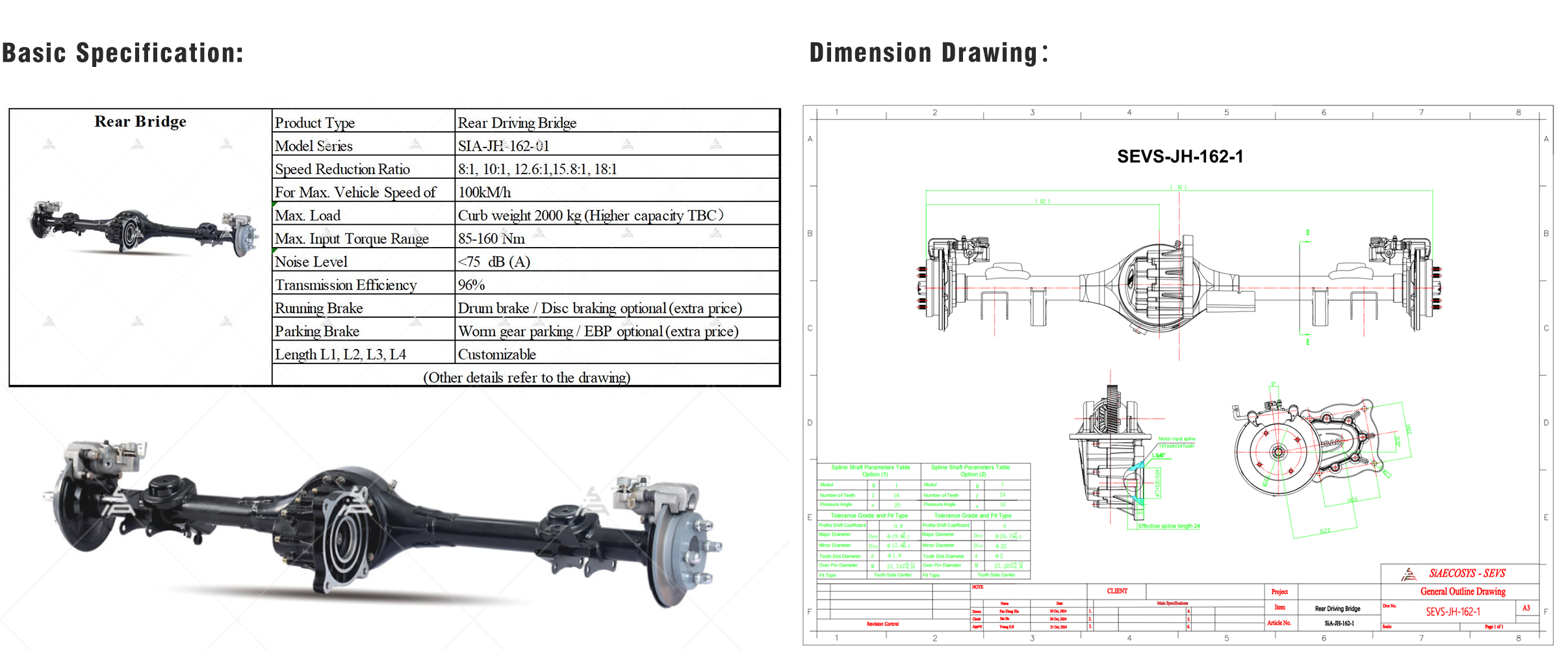

3. Rear Axle System
Model No.: JH-162-01
Various Vehicle Usage Scenarios
