EV Motor Controller CJ2450 48-88V | Programmable CAN Controller with Regenerative Braking

CJ Controller CJ2450 48-72V For 4kW AC/PMSM Motor

This 48–88 V motor controller is engineered for electric vehicles such as tricycles, mini cargo carts, and utility EVs. Supporting both PMSM and BLDC motors.

Featuring advanced sine wave and vector control algorithms, Its programmable parameters enable customization for different motor types and driving environments.

Equipped with CAN 2.0B communication, it supports real-time diagnostics, remote monitoring, and easy integration with vehicle management systems.

Robust safety functions—including protections against over-voltage, over-current, over-temperature, and short-circuit—ensure reliable and secure performance.

Key Features

Wide Voltage Range: Compatible with 48–88 V battery systems

Motor Type Support: PMSM and BLDC motors

Advanced Control: Sine wave and vector control for smooth torque and quiet operation

CAN 2.0B Interface: Enables real-time system integration and parameter tuning

Programmable Settings: Adjustable for different motors, loads, and terrains

Comprehensive Protection: Safeguards against over/under-voltage, current, temperature, and short-circuit

Durable Design: IP65/67-rated housing with Class H insulation for outdoor and industrial use

CONTACT US

Product Description

MCU 48-72V Motor Controller

APT.A8 7~18kVA (48~72V)

Basic Specification：

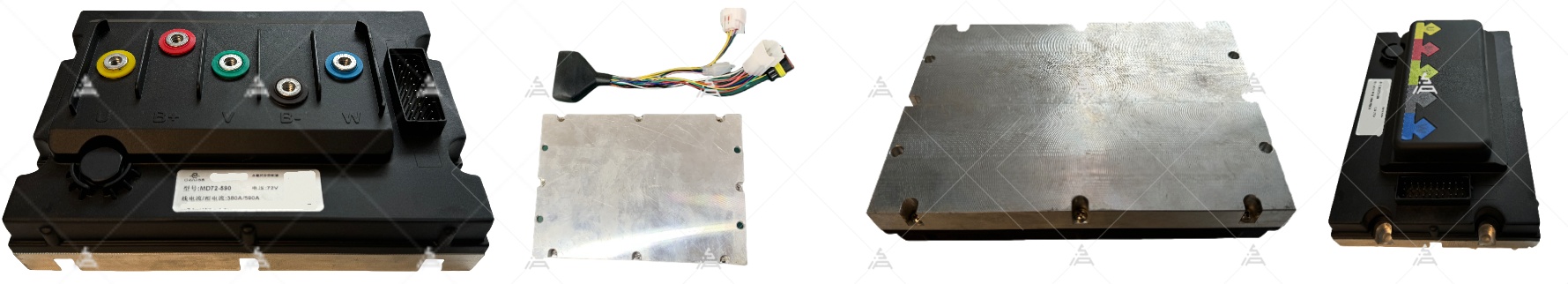

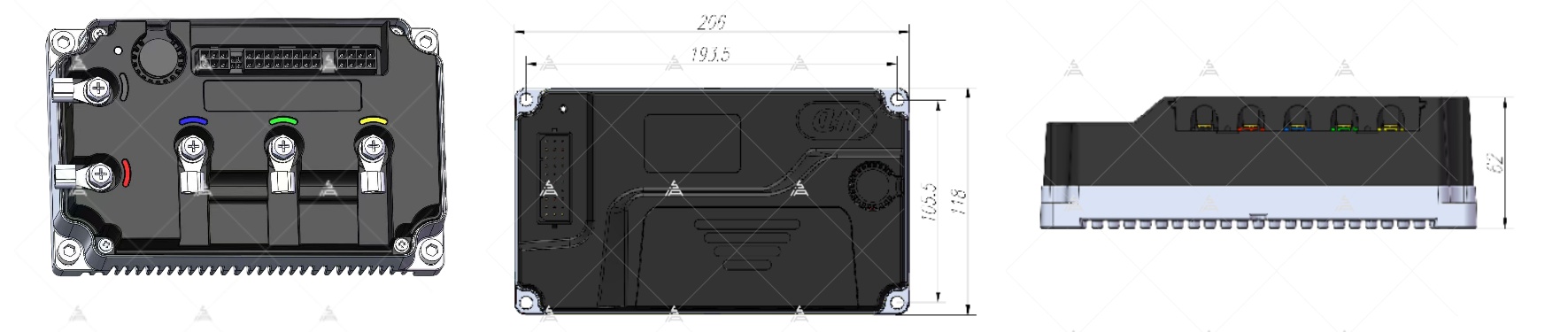

Multi-angle product photos：

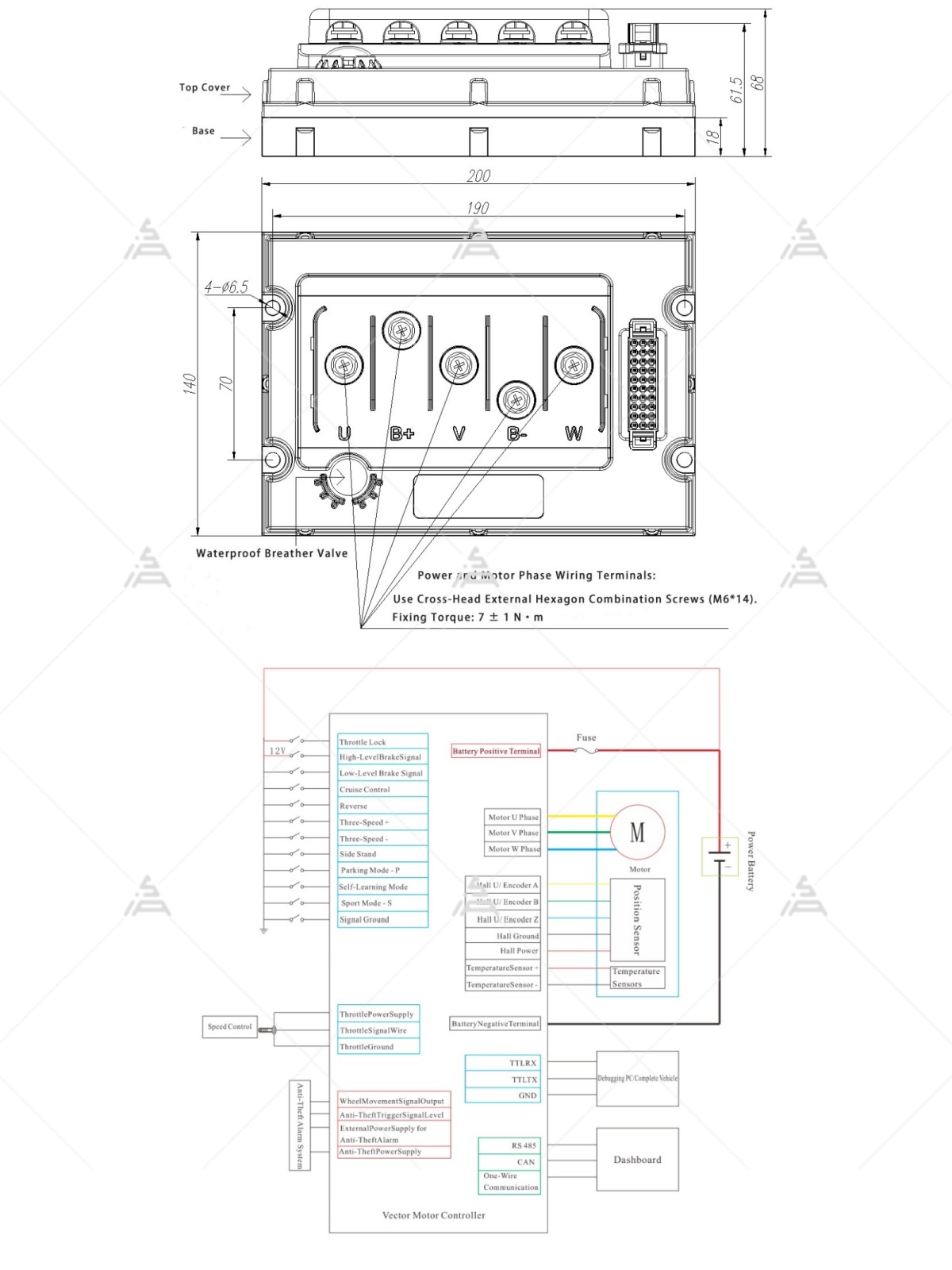

Wiring Definition & Drawing：

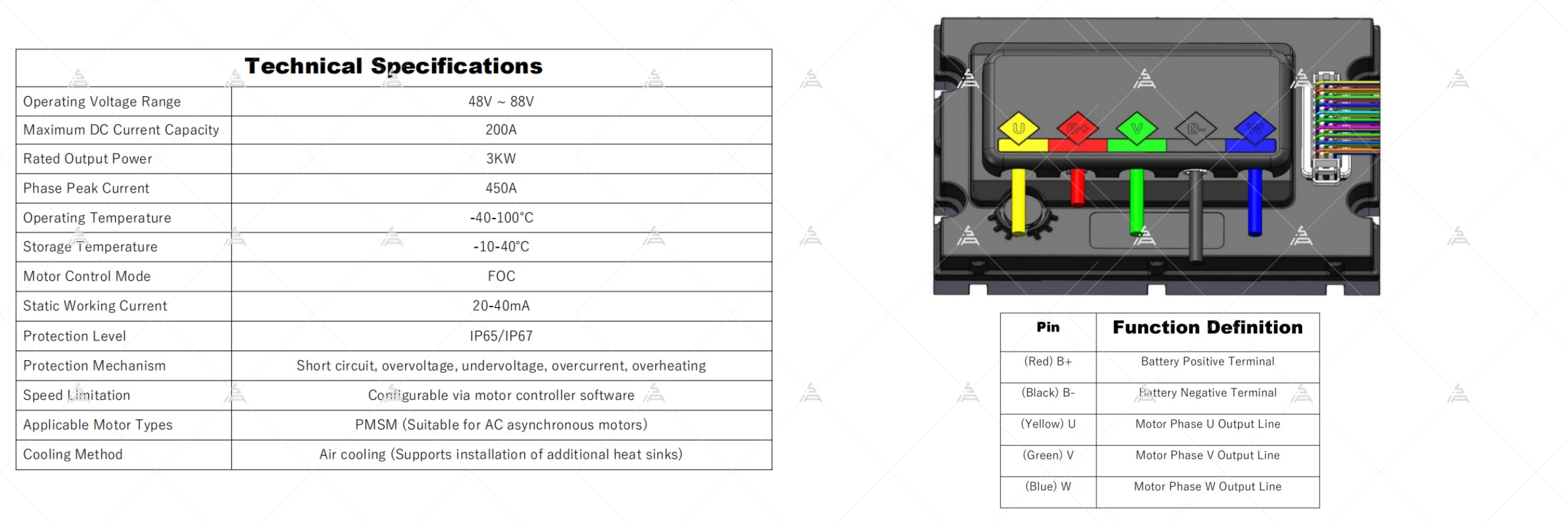

Controller Specification：

Various Vehicle Usage Scenarios

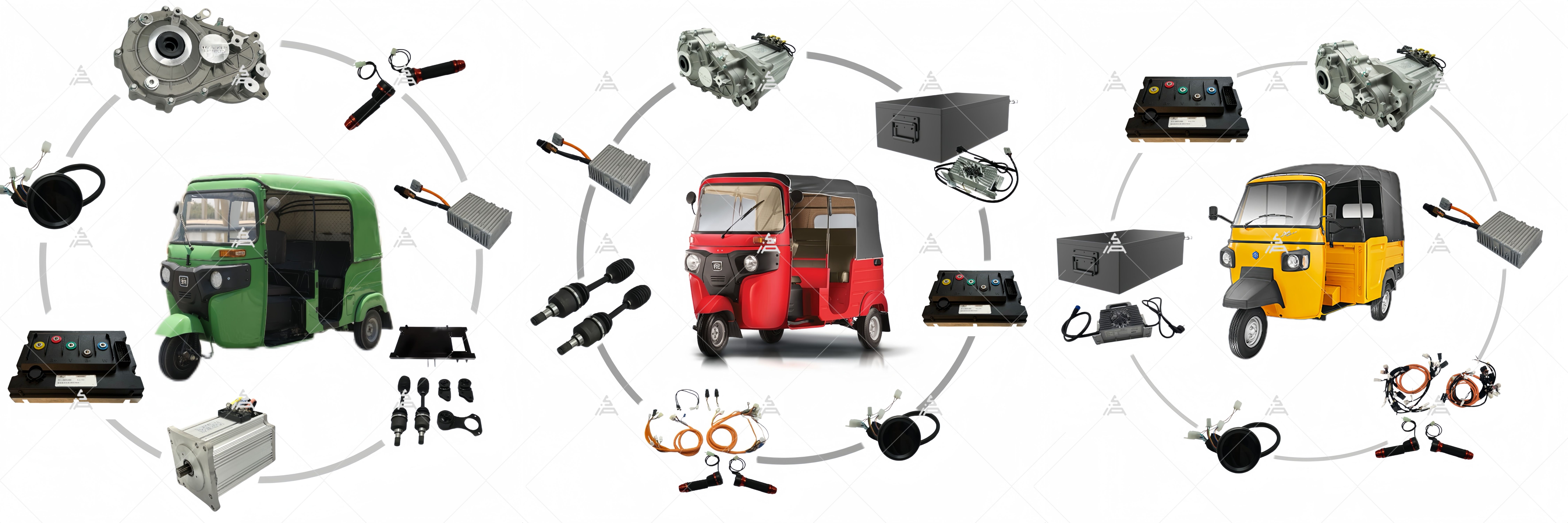

Click on the picture below to learn about our rear axle powertrain kit!
